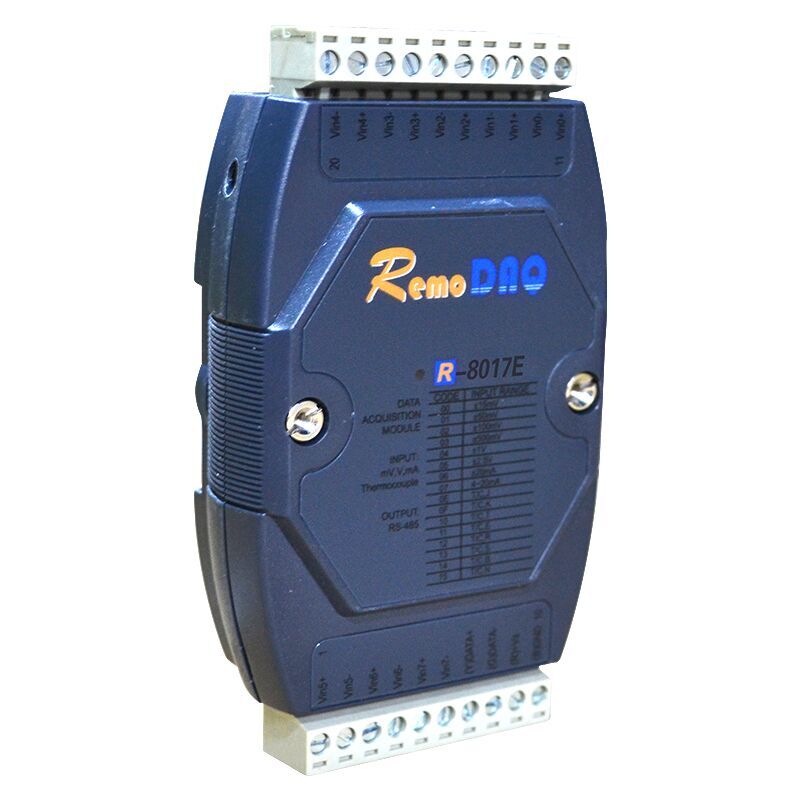

R-8017E

支持Modbus協議和ASCII協議的8通道差分模擬量輸入或6路差分（2路單端）輸入模塊。

輸入通道：8路或6路差分，2路單端（跳線可選）模擬量輸入模塊

輸入類型：電壓、電流

輸入類型：mV，V，mA

熱電偶類型：±150mV, ±500mV，±1V,±5V,±10V,±20mA,4~20mA

零漂移：0.5uV/℃

量程漂移：15ppm/℃

輸入阻抗：20M Ohms

過電壓保護：±51V

電源：輸入：+3.8V ~ +55VDC

功耗：2.5W

產品型錄

產品介紹
產品規格
檔案下載

支持Modbus協議和ASCII協議的8通道差分模擬量輸入或6路差分（2路單端）輸入模塊。

輸入通道：8路或6路差分，2路單端（跳線可選）模擬量輸入模塊

輸入類型：電壓、電流

輸入類型：mV，V，mA

熱電偶類型：±150mV, ±500mV，±1V,±5V,±10V,±20mA,4~20mA

采樣速率：10次/秒

帶寬：15.7Hz

精確度：±0.1%

零漂移：0.5uV/℃

量程漂移：15ppm/℃

CMR@50/60Hz：150dB

NMR@50/60Hz：100dB

輸入阻抗：20M Ohms

過電壓保護：±51V

電源：輸入：+3.8V ~ +55VDC

功耗：2.5W

溫度：-20℃ ~ 70℃

濕度：5% ~ 90%，無凝露

（本產品新舊包裝混發）
