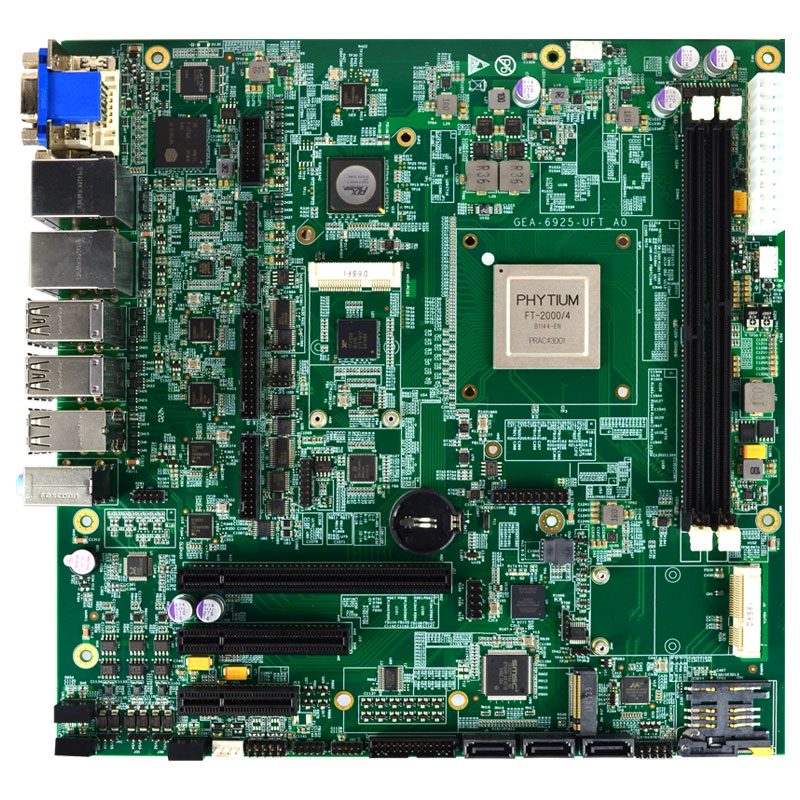

GEA-6925

基于飛騰四核FT-2000/4、D2000 8核，支持可信計算，16個USB、12個串口的mATX主板

產品型錄

產品介紹
產品規格
檔案下載

基于飛騰四核FT-2000/4、D2000 8核，支持可信計算，16個USB、12個串口的mATX主板

主要特點

◆ FT-2000/4飛騰CPU，4個FTC663內核，同時支持D2000 8核飛騰CPU，8個FTC663內核

◆ 板載VGA+DVI-D接口

◆ 支持大唐高鴻安全芯片，TCM1O，TPM2.0

◆ 支持可信華泰M.2接口的TPCM可信卡，板卡配合實現主動度量

◆ 支持多種開源操作系統或國產化操作系統

主板型號	GEA-6925
內存	2通道DDR4，可支持64GB內存
擴展	內置1個PCI-E 16X（X16 Slot）接口
	1個PCIe x8接口，可插客戶卡，信號為標準定義
	1個PCIe x4接口，插槽管腳定義符合PCI-E總線規范
	1個Mini PCIe插槽，管腳定義符合PCI-E總線規范
	1個M.2支持可信華泰的TPCM可信卡,兼容M.2 NVME SSD
串口	內置11個COM插針，海岸線1個全線制DB9串口為COM1,RS232/RS485切換，隔離保護
串口	COM2的 RS232和 RS485跳線可選，COM3-6跳線選擇5V/12V供電，,COM7-12三線制
USB	8個USB2.0，8個USB3.0
USB	海岸線On-Board USB 2.08，USB 3.08
以太網口	板載2個RJ45千兆電口
存儲	3個SATA接口
存儲	1個mSATA接口，兼容USB信號，可插SIM卡或4G模塊
電源	ATX 20Pin
操作系統	支持常用的開源操作系統或支持國產化操作系統（例如Centos，Ubantu，如麒麟，深度等）
工作環境	工作溫度0℃~ 45℃
工作環境	存儲溫度-40℃~ 70℃
