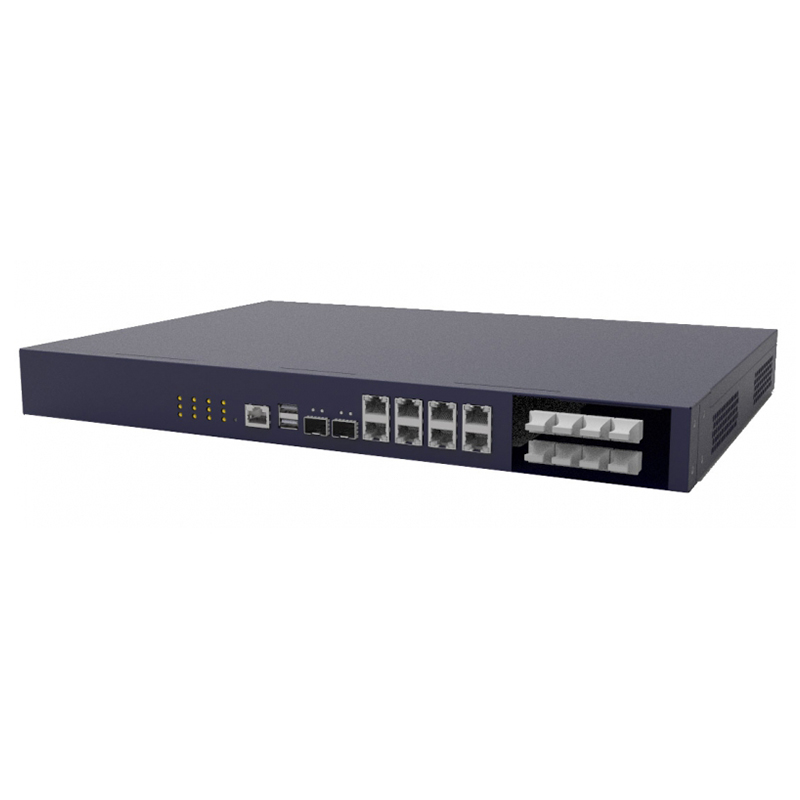

采用Intel C3000系列處理器的網關，在保證低功耗的應用場景要求下，提高了產品了兼容性和可擴展性。

產品型錄

產品介紹
產品規格
檔案下載

采用Intel C3000系列處理器的網關，提高了產品了兼容性和可擴展性。該網關支持2-16核心CPU，集成了4個10G LAN網口，支持Intel QAT技術，支持60G吞吐量，還可通過擴展接口，外接PCIE x8設備或4個PCIE x2設備。

中端C3000CPU

轉發性能	Up to 30Gbps
CPU	C3338R 2C 10.5W 1.5GHz C3558 4C 16W 2.2GHz C3758 8C 25W 2.2GHz
內存	DDR4 4G/8G/16G/32G Up to DDR4-2400
FLASH	4-64GB EMMC
Linux內核版本	4.14/4.19
固定業務接口	8電2光 8電2萬
USB接口	2
Bypass	2對
MSATA	1個
Mini PCIe	1個
M.2	1個
擴展槽	1: PCIE X8
電源	220V交流輸入
外形尺寸	19寸1U
防護等級	IP30
溫度	工作溫度0°C~55°C
散熱	無風扇散熱
安裝方式	支持機架安裝

高端C3000CPU

轉發性能	Up to 60Gbps
CPU	C3558 4C 16W 2.2GHz C3758 8C 25W 2.2GHz C3858 12C 25W 2.0GHz C3958 16C 31W 2.0GHz
內存	DDR4 4G/8G/16G/32G Up to DDR4-2400
FLASH	4-64GB EMMC
Linux內核版本	4.14/4.19
固定業務接口	固定業務接口
USB接口	2
Bypass	4對
MSATA	1個
Mini PCIe	1個
M.2	1個
擴展槽	2: PCIE X8+PCIE X4 4: PCIE X42+PCIE X22
電源	220V交流輸入
外形尺寸	19寸 1U/2U
防護等級	IP30
溫度	工作溫度 0℃~55℃
散熱	無風扇散熱
安裝方式	支持機架安裝

Driver

日期	說明	版本	操作系統	下載

Manual

日期	說明	版本	操作系統	下載
