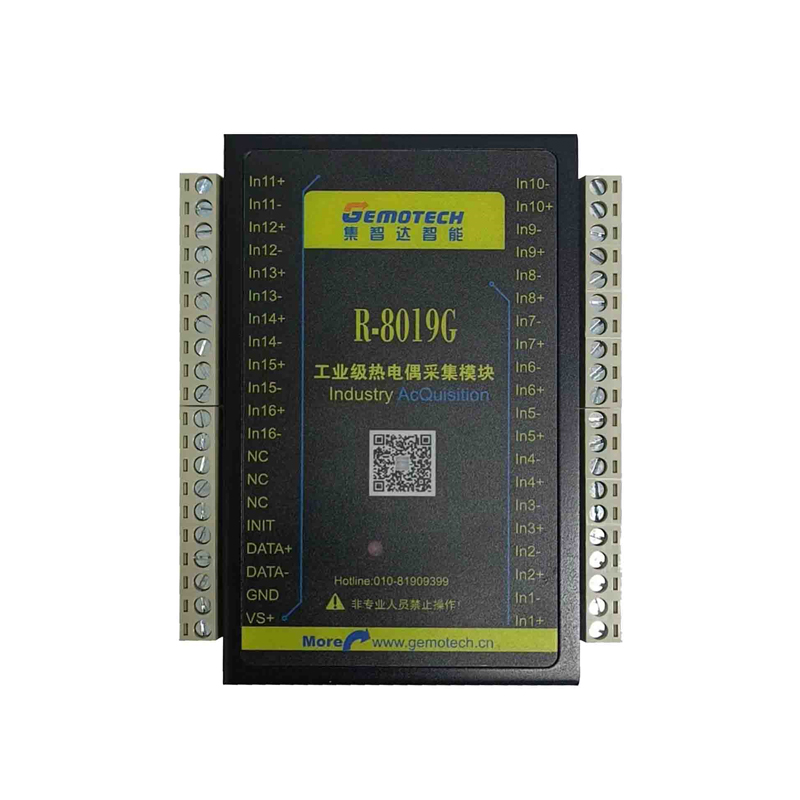

R-8019G

基于RS-485總線的16通道的熱電偶采集模塊

主要特點：
16通道差分輸入可測量采集更多的溫度點
24 位 sigma-delta ADC 提供高的精確度
內置 CJC冷端, 外部可直接連接熱電偶傳感器
支持?jǐn)嗯紮z測功能，熱電偶斷線后可檢測到并輸出特定值
金屬外殼與導軌連接可接地，增強抗干擾能力
支持MODBUS以及ASCII兩種協議，便于和主流PLC及上位機通信

產品型錄

產品介紹
產品規格
檔案下載

RemoDAQ-8019G 是一款基于RS-485總線的16通道的熱電偶采集模塊，相比于傳統的8路熱電偶采集模塊有著更多的采集通道，精度及可靠性高?？蓮V泛應用于鋼化爐，注塑機，鋼鐵冶煉等長距離測溫行業

主要特點：

16通道差分輸入可測量采集更多的溫度點
24 位 sigma-delta ADC 提供高的精確度
內置 CJC冷端, 外部可直接連接熱電偶傳感器
支持?jǐn)嗯紮z測功能，熱電偶斷線后可檢測到并輸出特定值
金屬外殼與導軌連接可接地，增強抗干擾能力
支持MODBUS以及ASCII兩種協議，便于和主流PLC及上位機通信

RemoDAQ-8019G

輸入通道：16 路模擬量輸入模塊

輸入類型：熱電偶

輸入類型：mV

熱電偶類型：J,K,T,E,R,S,B,N

采樣速率：10 次/秒（最快 41.6Hz）

帶寬：15.7Hz

精確度：±0.1%

零漂移：0.5uV/℃

量程漂移：15ppm/℃

安裝方式：導軌式

CMR@50/60Hz：150dB

NMR@50/60Hz：100dB

輸入阻抗：3.3M Ohms

隔離電壓：3000VDC

過電壓保護：±51V

電源

輸入：+10V ~ +30VDC

功耗：0.4W（24V）

溫度：-30℃ ~ 75℃

濕度：5% ~ 90%，無凝露

（本產品新舊包裝混發）
