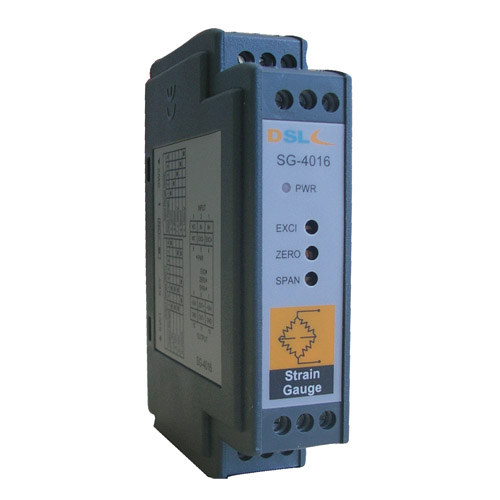

SG-4016

隔離的張力(應變)信號輸入模塊

主要特點

產品型錄

產品介紹
產品規格
檔案下載

隔離的張力(應變)信號輸入模塊

電壓

輸入：±10mV，±20mV，±30mV，±50mV，±100mV

激勵電壓：1～10VDC(最大60mA ，出廠默認設置10V)

輸出

電壓輸出：

雙極性：±5V，±10V

單極性：0～10V

輸出阻抗：<50Ω

電流輸出：

電流：0～20mA

負載：0～500Ω（源）

常規

隔離（3相）：1000VDC

精確度：±0.1% （滿量程）

帶寬：2.4KHz

穩定性（溫度漂移）：150ppm

隔離模式抑制：＞100dB@50Hz/60Hz

溫度范圍：-20℃ ~ 70℃

濕度：5% ~ 90%，無凝露

電源

功耗：1.85W（電壓輸出）
2.15W（電流輸出）

電壓：24VDC ±10%

（本產品新舊包裝混發）

Driver

日期	說明	版本	操作系統	下載

Manual

日期	說明	版本	操作系統	下載
