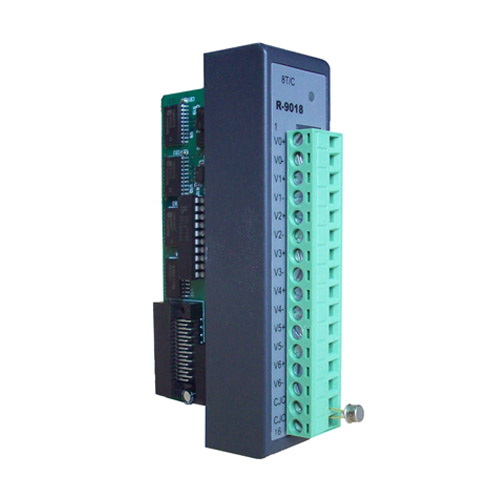

R-9018

7路熱電偶輸入模塊

主要特點

- 通道 7路差分
- 有效分辨率 16 位
- 輸入類型 mV,V,mA,熱電偶
- 輸入范圍 ±15mV, ±50mV,±100mV, ±500mV，±1V, ±2.5V, ±20 mA
- 隔離電壓 3000VDC
- 故障和過壓保護最大承受電壓±35V
- 采樣速率 10采樣點/秒(總共)
- 輸入阻抗 2MΩ

產品型錄

產品介紹
產品規格
檔案下載

7路熱電偶輸入模塊

主要特點

（本產品新舊包裝混發）

通道	7路差分
有效分辨率	16位
輸入類型	mV，V，mA，熱電偶
輸入范圍	±15mV， ±50mV，±100mV， ±500mV，±1V， ±2.5V， ±20 mA
熱電偶類型與溫度范圍	J 0° ～ 760℃ K 0° ～ 1370℃ T -100° ～ 400℃ E 0° ～ 1000℃ R 500° ～ 1750℃ S 500° ～ 1750℃ B 500° ～ 1800℃
隔離電壓	3000VDC
故障和過壓保護	承受電壓±35V
采樣速率	10采樣點/秒(總共)
輸入阻抗	2MΩ
帶寬	13.1 Hz @ 50 Hz， 15.72Hz @ 60 Hz
精度	±0.1%
零飄移	±0.3 mV /℃
滿量程漂移	±25PPM/℃
CMR@50/60Hz	92db
功耗	0.5W(典型) 0.63W
	每個通道均可設定不同的量程

訂貨信息
- R-9018 7路熱電偶輸入模塊 -mV，V， mA 熱電偶

Driver

日期	說明	版本	操作系統	下載

Manual

日期	說明	版本	操作系統	下載
