GEA-8501 ARM 嵌入式整機

主要特點：

- 高性能、無風扇、低功耗、體積小
- Cortex-A9 4 核 1.4GHz CPU / 1G 內存
- 4G EMMC 存儲
- HDMI / LVDS24BIT 雙通道 / VGA
- 支持LAN/WiFi/3G
- 6 串口，4USB,1 個OTG
- 9 個GPIO

產品型錄

產品介紹
產品規格
檔案下載

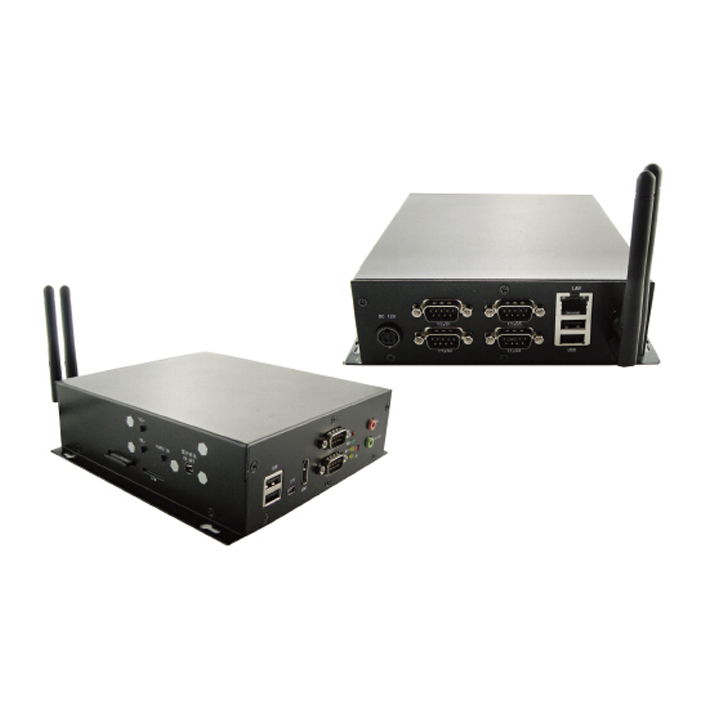

GEA-8501 ARM 嵌入式整機

操作系統	Android 4.2.2
CPU/GPU	RK3188 A9 4 核 1.4GHZ
內存	1G
存儲	（1）板載EMMC 4G （2）SDx1"
3G	WCDMA/CDMA2000/GPRS/SMS 雙網無需雙待天線外置
3G	支持3G 共享
WIFI	802.11b/g/n (802.11a possible).
WIFI 熱點	提供API,WIFI 熱點，最大8 個連接
RJ45 網絡	1 個10/100 LAN
麥克風	標準音頻口
揚聲器	Audio Realtek ALC5631V 晶片. 1W 雙聲道
顯示	(1) 1 個HMDI 大口需要支持19201080 1360768，1366768 三種分辨率，出廠默認設置為1366768 (2) 1 個LVDS 24BIT 雙通道 (3) 1VGA PIN 排針"
GPIO	IO 接口9 個，有輸入、輸出、中斷輸入能力
硬件看門狗	硬件看門狗
USB	4 個USB 2.0，HOST 或Client 每個提供標準500ma 電流，1 個OTG 模式
串口	6 個 3 線DB9 串口, 其中2 個DB9 包含RS232/422/485 三種協議；4 個RS232
支持外接鼠標	可以外接鼠標，以便觸屏損壞的時候操控PC Box
電源	DC 12V , 4-PIN DIN with LOCK,
外觀尺寸	18cm * 15cm * 5cm
海岸線	WIFI/3G 天線，2USB, 電源接頭，4COM/2 個RS232/2COM(RS232/422/485),1 個10/100LAN
工作溫度	0 ～ 55 攝氏度
設計壽命	5 ～ 7 年
