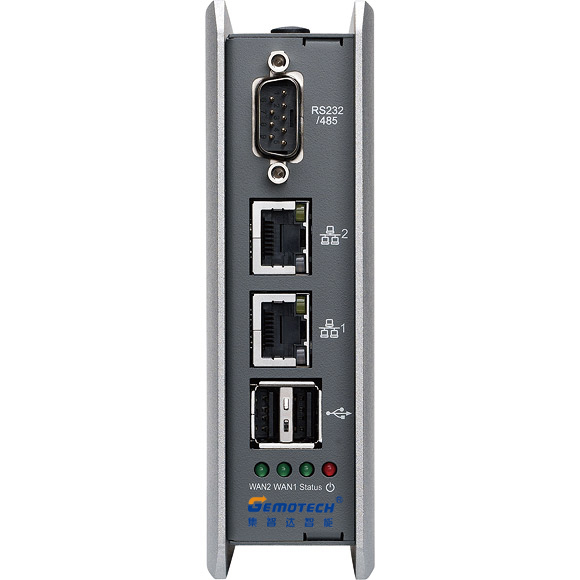

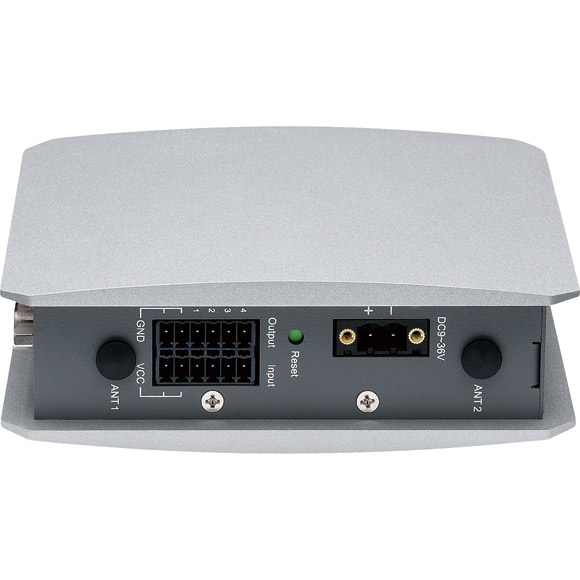

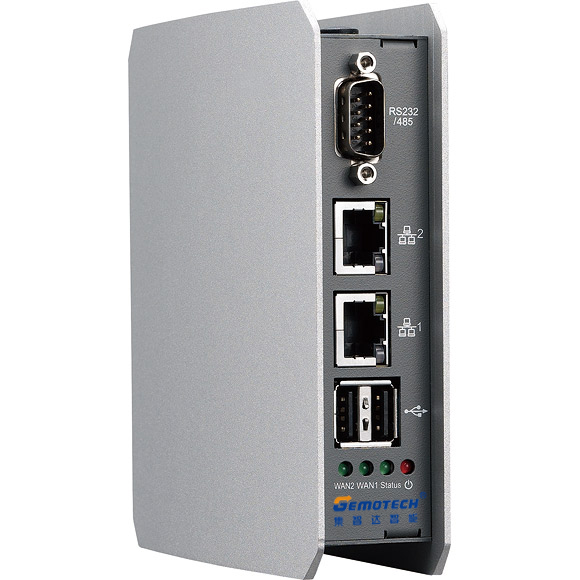

GIO-100

主要特點：

- 板載 Intel®Quark X1021 單核，400MHz 處理器

- Wind River® 或 Yocto (only for NIO100y) 操作系統和 McAfee® 安全軟件解決方案

- 可選 Wi-Fi 或 Wireless 模塊

- 2 x 10/100 以太網接口

- 1 x mPCIe 槽作為 Radio 模塊 (only for NIO 100)

- 1 x mPCIe 槽作為 FBI 模塊 (only forNIO 101)

- 2 x USB 2.0 type A

- 1 x RS232/485 可選

- DIO 4x4

- 支持 9~36V 寬壓輸入，phonix x 2 pin 接線端子

- 支持 -20 ~ 70°C 寬溫

產品型錄

產品介紹
產品規格
檔案下載

GIO-100, 專為IoT（物聯網）網關的云應用而設計，主要集中在工業領域，通過 RS232/485/DIO 收集傳感器數據，和3G，WiFi或以太網的云數據傳輸。GIO-100 適用9 ~ 36V的范圍直流輸入的工業環境。

CPU	Onboard Intel® Quark SoC processor X1021 Single Core 400MHz
內存	DDR3 1GB EMMC 4GB
串口	1 x RS232/485 (software selectable )
DIO	4 x 4 DIO supports
USB	2 x USB 2.0 Type A
Ethernet	2 x 10/100 Base-TX MDI/MDIX Auto cross
Reset	1x reset button
擴展槽	1x mPCIe, half/short size One for Wi-Fi/3G module (Optional)
電源需求	DC 9~36V with 2 pins phonix terminal block Din-Rail(optional)/Wall mountable Dimension: 130 x 130 x 60mm Weight: 700g (w/o bracket)
SW特性	Moon Island Liunx 5.0.1 Macfee security Web GUI management Xcare client Modbus TCP
環境保護	Operating temperature: -20°C ~ 70°C Storage temperature: -30°C ~ 80°C Pole/Wall mount kit x1
機械構造	Wall Mounting Stand Rubber 110 x110 x 60mm -20 ~ 70 degree C
