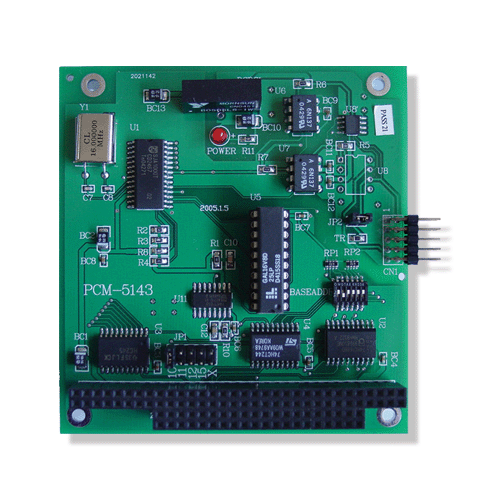

PCM-5143/5143X2

單路/雙路隔離型PC/104總線CAN BUS接口卡

主要特點

- CAN網絡通訊速率: 1Mbit/s
- CAN網絡接口控制器: Philips SJA1000
- CAN網絡收發器: Philips 82C251
- CAN網絡連接器: DB9，針式
- 隔離電壓: 1000VDC
- DOS驅動程序，Windows95/98/NT/2000/XP驅動程序
- 可選中斷，I/O地址
- 外形尺寸: 90mm×96mm
- 工作溫度: 0～60℃
- 工作濕度: 5%～95%
- 功耗: +5V@200mA

產品型錄

產品介紹
產品規格
檔案下載

訂貨信息:
- PCM-5143 單口非智能隔離型PC/104總線CAN BUS接口卡
- PCM-5143×2 雙口非智能隔離型PC/104總線CAN BUS接口卡
