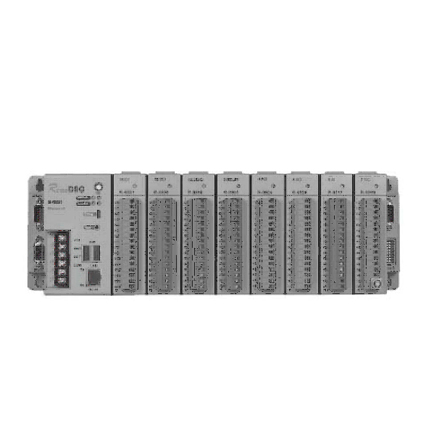

RemoDAQ-9431/9831/9438/9838

· 10/100/1000Base-T Ethernet interface
· Self-built Modbus /RTU Server
· Support Modbus /TCP Client
· Support Modbus /RTU Master and Slave Station
· Support Ethernet Isagraf(R-9438/9838)
· IEC-61131-3 Standard
· Support LD／FB/SFC/lL/ST language
· Linux operating system, C language programming(R-9431/9831)
· 4/8 slots for use with I/O, Basic unit can support up to 64/128 of the I/O points
· Support for Al/AO/Dl/DO counter function block
· Through a serial port extension 32 extension units, Each extension unit can support
64/128 of the I/O points

產品型錄

產品介紹
產品規格
檔案下載

Introduction
RemoDAQ-9431/9831/9438/9838 is a soft logic controller with Ethernet interface.
It also provides Ethernet function, including the Modbus/TCP Server, Modbus/TCP
Client and Ethernet. Then users can facilitate rapid completion based on Ethernet
architecture programming.

Specifications

·CPU	Atmel SAMA5D36 Cortex a5, 536MHz
·Storage	512M Nand Flash，256KB SRAM (Save the data one month)
·Operating system	Linux
·Real-time clock	enabled
·Built-in watchdog	enabled
·COM1 RS	RS-232/485
·COM2	RS-485
·COM3	RS-232
·COM4	RS-232/485
·communication protocol	Modbus/RTU and Modbus/TCP
·I/O capacity	4 slots(9431/9438)，8 slots(9831/9838)
·Status display	Power, CPU, Communication and battery
·CPU power consumption	3.0W
Field bus	CAN field, 2 interface, Support 2.0A/2.0B Protocol
Isolation protection	·power input	3000 VDC
	·communication	2500 VDC(except COM3)
Ethernet	110/100/1000Mbps, 110/100Mbps
VGA display	·Resolution	1024*768
Extension	Through 485 extensible 32 slave units of 4/8 slots
Software support	·Isagraf Soft logic programming
	·C language programming
Power	·Unconditioned +10～+30VDC
	·Reverse power protection
Mechanical features	·Coating	KJW plastics, with install accessories
	·Plug-in screw terminator	Plug-in screw terminator: diameter of lead 0.05mm2 to 2.5mm2, 1-＃12 or 2- ＃14 to ＃22AWG
Environment	·Operating temp	-40～85℃
	·Storage temp	-40～85℃
	·Humidity	5～95 ％non-condensing
Order information	·RemoDAQ-9431	4 slots Ethernet programmable controller
	·RemoDAQ-9438	4 slots Ethernet programmable controller
	·RemoDAQ-9831	8 slots Ethernet soft logic controller
	·RemoDAQ-9838	8 slots Ethernet soft logic controller
