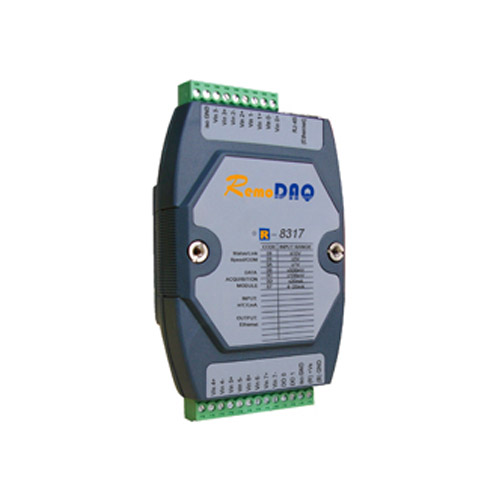

R-8317

8路帶DO的模擬量輸入模塊

主要特點

-    模擬量輸入
-    有效分辨率   16位
-    通道               8路差分
-    輸入類型       mV，V，mA
-    輸入范圍       ±150mV，±500mV，±5V，±10V，0-20mA，4-20 mA
-    隔離電壓       2000VDC

產品型錄

產品介紹
產品規格
檔案下載

8路帶DO的模擬量輸入模塊

主要特點

（本產品新舊包裝混發）

模擬量輸入

有效分辨率	16位
通道	8路差分
輸入類型	mV，V，mA
輸入范圍	±150mV，±500mV，±5V，±10V，0-20mA，4-20 mA
隔離電壓	2000VDC
故障和過壓保護	可承受電壓± 35V
采樣速率	10采樣點/秒
輸入阻抗	20MΩ
帶寬	13.1Hz@50Hz 15.72Hz@60Hz
精度	±0.1%
零漂移	±6μV/℃
滿量程漂移	±25ppm/℃
CMR@50/60Hz	92db

數字量輸出

通道	2，集電極開路30V 100mA負載
光隔離	2000 V RMS

電源

電源要求	未調理10 ～ 30 VDC
功耗	2W
內置看門狗定時器	是

訂貨信息
- R-8317 8路帶DO的模擬量輸入模塊

Driver

日期	說明	版本	操作系統	下載

Manual

日期	說明	版本	操作系統	下載
2015/02/11	用戶手冊 R-8317			下載
