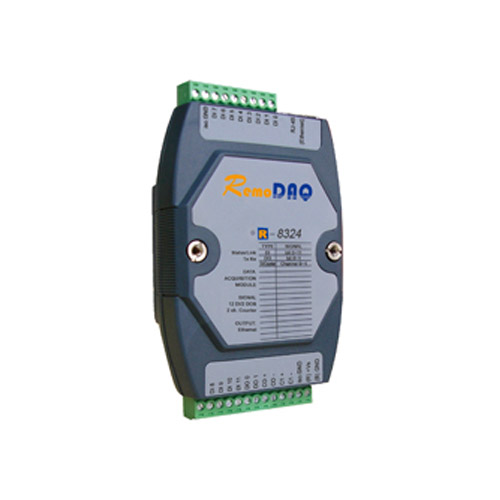

R-8324

12路通用輸入/輸出模塊

主要特點

模擬量輸出
-    通道 4
-    有效分辨率 12位
-    輸出范圍 0～10VDC,0-20mA,4-20mA
-    驅動電壓 5VDC（電流輸出）
-    隔離電壓 2000 VDC

數字量輸入
- 通道 4

    干接點
    邏輯電平0：接地
    邏輯電平1：開路
    濕接點：
    邏輯電平0：+3Vmax
    邏輯電平1：+10V到30VDC

數字量輸出
-    通道 4
     集電極開路30V
     100mA 負載

產品型錄

產品介紹
產品規格
檔案下載

12路通用輸入/輸出模塊

模擬量輸出

有效分辨率	12位
通道	4
輸入范圍	0～10VDC，0～20mA，4～20mA
驅動電壓	5VDC（電流輸出）
隔離電壓	2000VDC
精度	滿量程的0.05%
零漂移	±50ppm/℃

數字量輸入

通道	4 干接點：邏輯電平0：接地邏輯電平1：開路濕接點：邏輯電平0：+3Vmax 邏輯電平1：+10V到30VDC

數字量輸出

通道	4 集電極開路30V 100mA 負載

電源

功耗

4W（典型）

訂貨信息
- R-8324 12路通用輸入/輸出模塊

（本產品新舊包裝混發）

Driver

日期	說明	版本	操作系統	下載

Manual

日期	說明	版本	操作系統	下載
2015/02/11	用戶手冊 R-8324			下載
