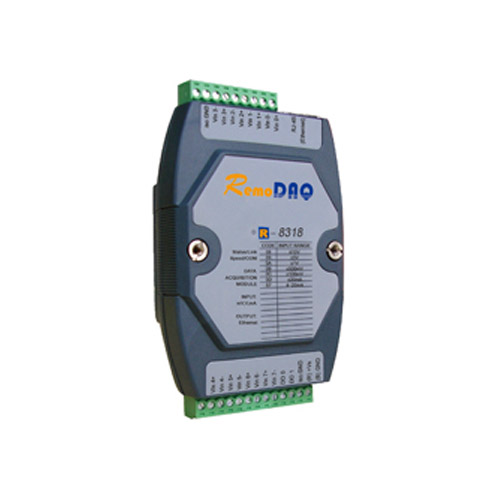

R-8318

8路模擬量/熱電偶輸入模塊

主要特點

-   有效分辨率 16位
-   通道 8路差分
-   隔離電壓 2000VDC
-   故障和過壓保護承受電壓± 35V
-   采樣速率 10采樣點/秒
-   輸入阻抗 7MΩ
-   帶寬 13.1Hz@50Hz 15.72Hz@60Hz
-   精度 ±0.1%或更高
-   零漂移 ±6μV/℃
-   滿量程漂移 ±25ppm/℃

產品型錄

產品介紹
產品規格
檔案下載

8路模擬量/熱電偶輸入模塊

模擬量輸入

有效分辨率	16位
通道	8路差分
輸入類型	熱電偶，mV，V，mA
輸入范圍	±15mV，±50mV，±100mV，±500mV，±1V，±2.5V，±20mA
熱電偶類型和范圍	J 0～760℃ K 0～1370℃ T -100～400℃ E 0～1000℃ R 500～1750℃ S 500～1750℃ B 500～1800℃
隔離電壓	2000VDC
故障和過壓保護	承受電壓± 35V
采樣速率	10采樣點/秒
輸入阻抗	7MΩ
帶寬	13.1Hz@50Hz 15.72Hz@60Hz
精度	±0.1%或更高
零漂移	±6μV/℃
滿量程漂移	±25ppm/℃
CMR@50/60Hz	92db

電源

電源要求	未調理10 ～ 30 VDC
功耗	2W
內置看門狗定時器	是

訂貨信息
- R-8318 8路模擬量/熱電偶輸入模塊

（本產品新舊包裝混發）

Driver

日期	說明	版本	操作系統	下載

Manual

日期	說明	版本	操作系統	下載
2015/02/11	用戶手冊 R-8318			下載
